Radiology KVMs

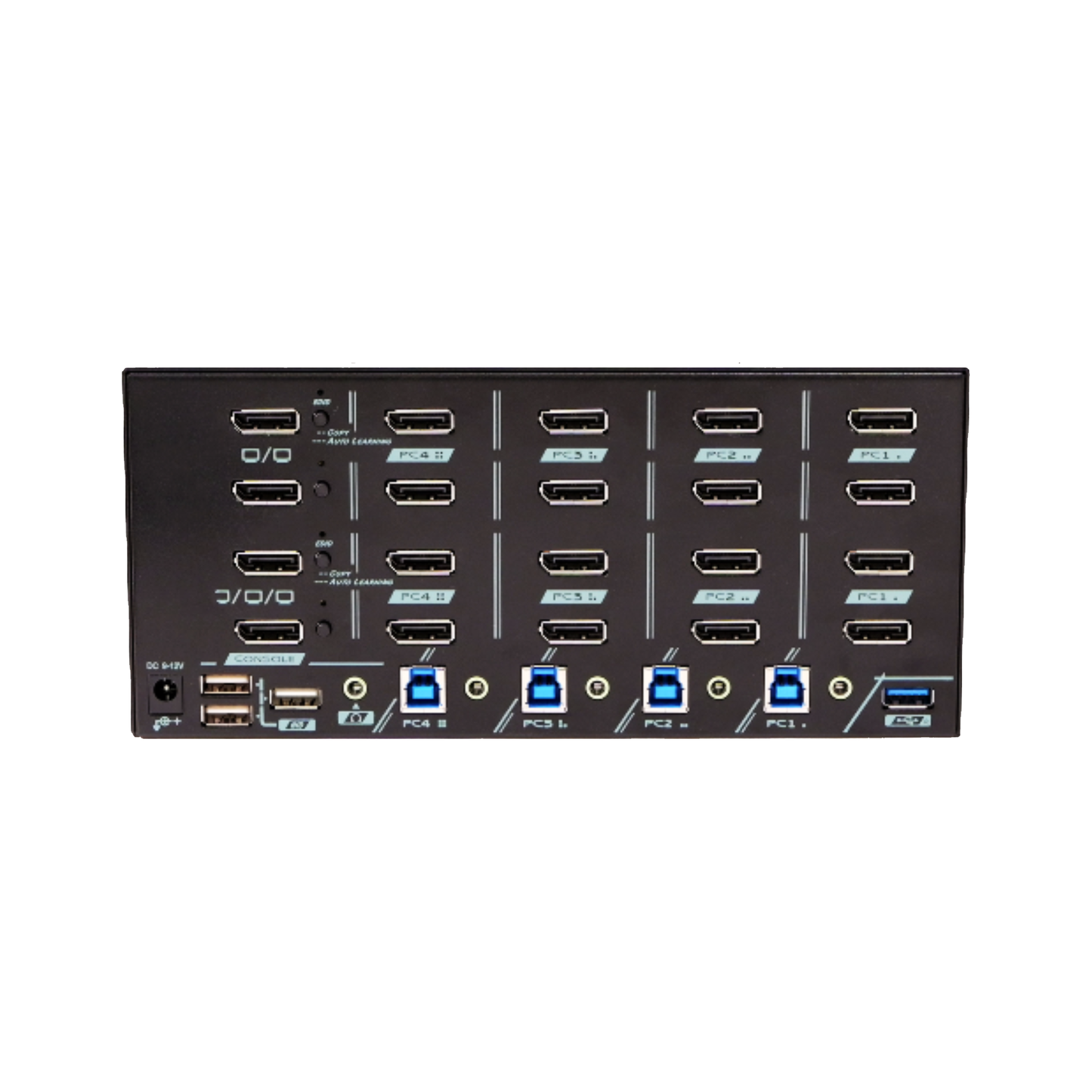

DisplayPort 1.2 EDID KVM - Quad Output - Quad Input

DisplayPort 1.2 EDID KVM - Quad Output - Quad Input

$2,500.00
$2,500.00
Sale Sold out
Shipping calculated at checkout.
View full details

Features & Compliance

  • Most Popular Resolutions Supported Up to 4K@60Hz ( 4:4:4 ) by DP 1.2 Video
  • HDCP Engine Ensures Low-Latency Switch, and Uninterrupted Video Playback, and Mitigates DisplayPort's Windows Relocation Issue during Switch
  • USB 3.2 Gen 1 Provides Excellent 5 Gbps Speed
  • EDID Management, Including EDID Copy / Auto EDID, Ensures Display Compatibility

Specifications



Computer/Server Ports (input)

DisplayPort 1.2 x 16 ( Quad Display x 4 PCs )
USB 3.2 Gen 1 Type B x 4
Audio Jack in x 4

Console Ports (output)

DisplayPort 1.2 x 4 ( Quad Display )
USB 3.2 Gen 1 Type A x 2 ( Rear & Front )
USB HID Type A x 4 ( Rear & Front )
Audio Jack out x 1

Video Resolution (Max.)

Supports up to 3840x2160@60Hz (4:4:4)

Push Buttons

Port Selection x 4

HDCP Compliance

HDCP 2.2 / 1.4

Control Methods

Hotkey / Push Button

LED Indicator (Power / Status)

Power x 1
Computer ready x 4 (green)
Computer selected x 4 (red)

Automatic scan interval

3, 8, 15, 30 seconds

Enclosure

Metal

Power Supply

DC 9~12V

Operation Environment

0~40°C, Humidity<80%

Storage Temperature

-20~60°C

Enclosure

Metal

H x W x D (mm)

100 x 220 x 130

Weight (g)

2000
