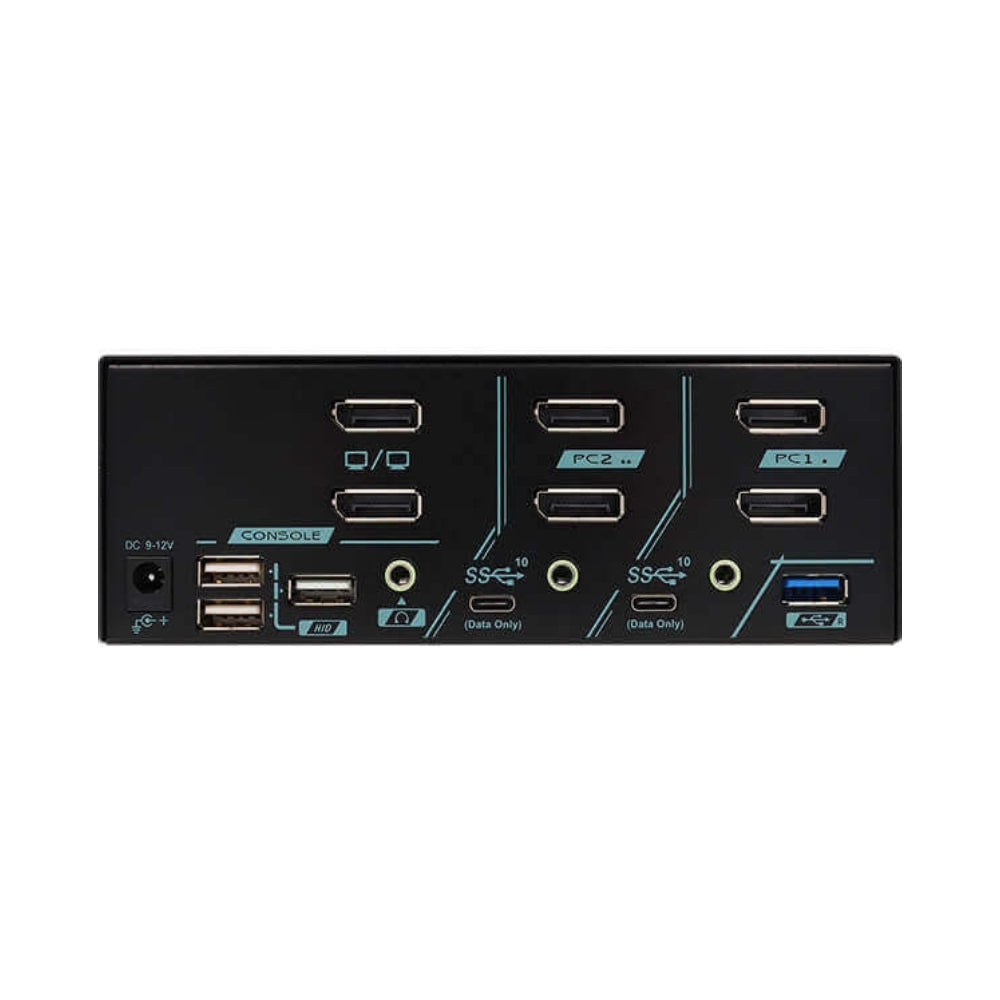

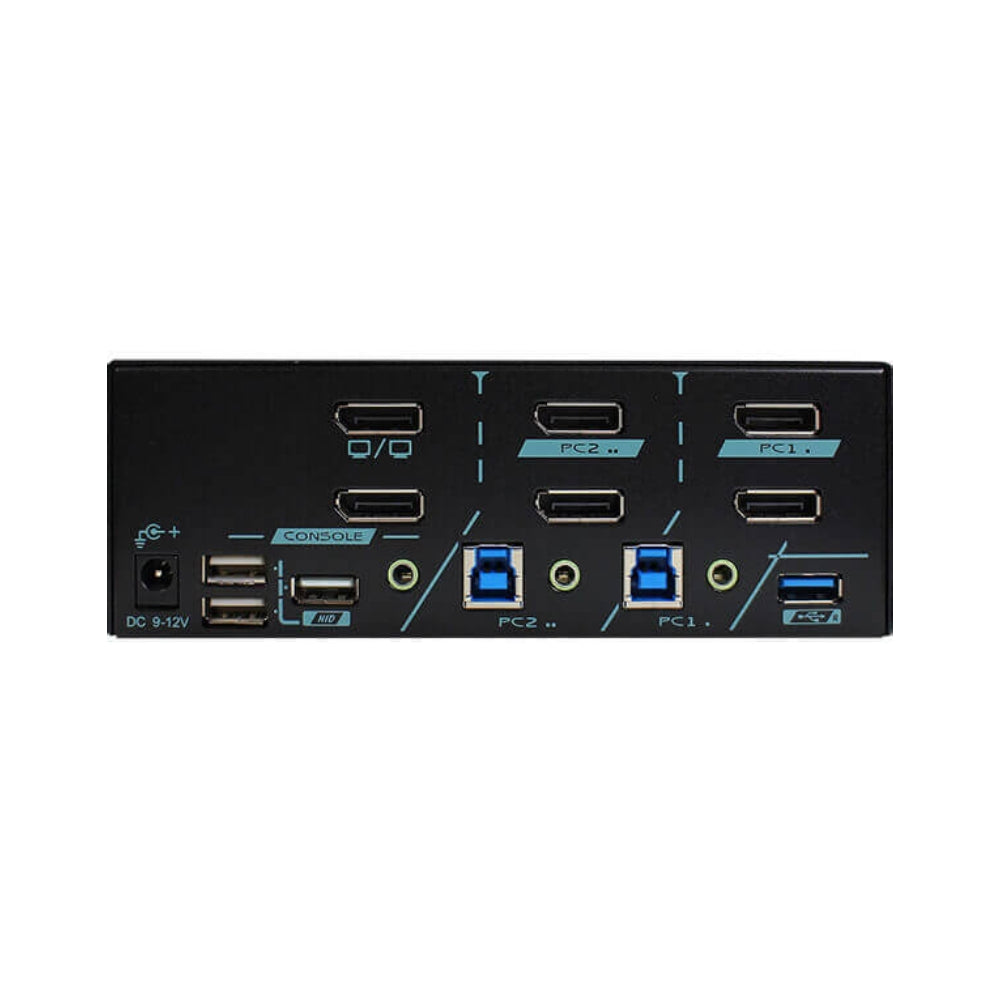

DisplayPort 1.4 KVM - Dual Output - Dual Input

DisplayPort 1.4 KVM - Dual Output - Dual Input

$520.00
$520.00
Sale Sold out
Shipping calculated at checkout.
USB Interface
View full details

Features & Compliance

  • L1Techs products are always labeled with FCC, CE, VCCI mark, and conformed to RoHS & REACH standard.
  • With an ISO-9001 certification, all products meet IEC standard.
  • NDAA  & TAA Compliant with isolated inputs.
  • HDR10 Support
  • HDCP 2.2 and HDCP 1.4 Compliance
  • DSC (Display Stream Compression) allows even higher resolutions
  • HFR (High-Frame-Rate) allows best performance in high dynamic videos
  • VRR (Variable Refresh Rate) for AMD FreeSync & Nvidia G-SYNC compatibility
  • MST (Multi-Stream Technology) allows expansion to more monitors

Specifications

Computer/Server Ports (input)

DisplayPort 1.4 x 4 ( Dual Display x 2 PCs )
USB 3.2 Gen 1 Type B x 2 (5-Gigabit)

USB-C x 2 ( USB 3.2 Gen 2 ) (10 Gigabit)
Audio Jack in x 2

  Console Ports (output)

DisplayPort 1.4 x 2 ( Dual Display )
USB 3.2 Gen 1 Type A x 2 ( Rear & Front ) (5-Gigabit)

USB 3.2 Gen 2 Type A x 2 ( Rear & Front ) (10 Gigabit)
USB HID Type A x 4 ( Rear & Front )
Audio Jack out x 1

  Video Resolution (Max.)

7680 x 4320 @ 60Hz (4:4:4) ( DSC )
7680 x 4320 @ 60Hz (4:2:0)
5120 x 2880 @ 60Hz (4:4:4)
5120 x 1440 @ 120Hz (4:4:4)
3840 x 2160 @ 144Hz (4:4:4)
3840 x 2160 @ 120Hz (4:4:4)
2560 x 1440 @ 144Hz (4:4:4)
2560 x 1440 @ 120Hz (4:4:4)
2048 × 2048 @ 60 Hz  (4:4:4) (2K x 2K)

  Push Button

Port Selection x 1

  HDCP Compliance

HDCP 2.2 / 1.4

  Control Methods

Hotkey / Push Button

  LED Indicator (Power / Status)

Computer ready x 2 (Green)
Computer selected x 2 (Red)

  Automatic scan interval

3, 8, 15, 30 seconds

  Power Supply

DC 9~12V

  Operation Environment

0~40°C, Humidity<80%

  Storage Temperature

-20~60°C

  Enclosure

Metal

  H x W x D (mm)

60 x 160 x 100

  Weight (g)

725
