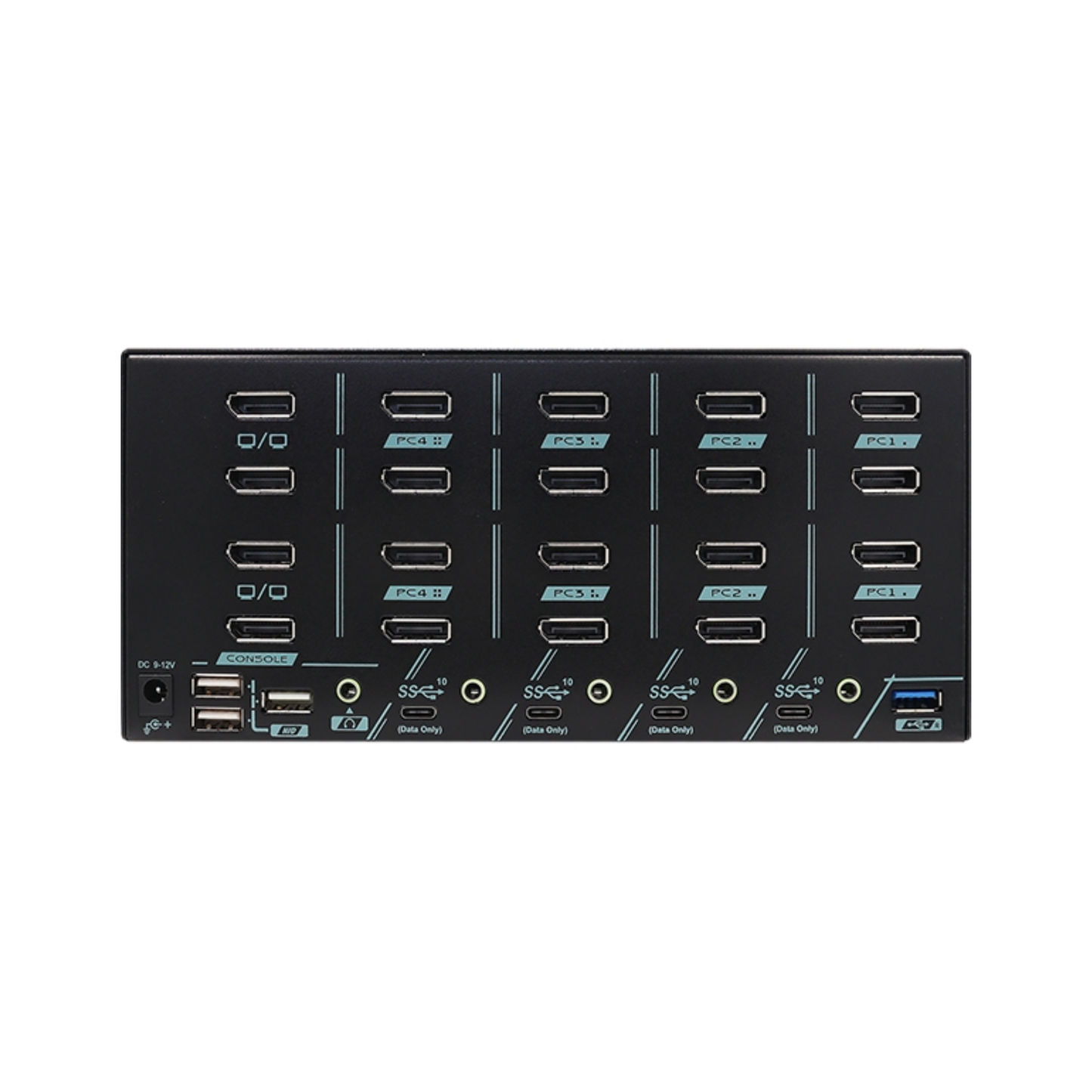

DisplayPort 1.4 KVM - Quad Output - Quad Input

DisplayPort 1.4 KVM - Quad Output - Quad Input

$1,199.00
$1,199.00
Sale Sold out
Shipping calculated at checkout.
USB Interface
View full details

Features & Compliance

  • L1Techs products are always labeled with FCC, CE, VCCI mark, and conformed to RoHS & REACH standard.
  • With an ISO-9001 certification, all products meet IEC standard.
  • NDAA  & TAA Compliant with isolated inputs.
  • HDR10 Support
  • HDCP 2.2 and HDCP 1.4 Compliance
  • DSC (Display Stream Compression) allows even higher resolutions
  • HFR (High-Frame-Rate) allows best performance in high dynamic videos
  • VRR (Variable Refresh Rate) for AMD FreeSync & Nvidia G-SYNC compatibility
  • MST (Multi-Stream Technology) allows expansion to more monitors

Specifications



Computer/Server Ports (input)

DisplayPort 1.4 x 16 ( Quad Display x 4 PCs )
USB 3.2 Gen 1 Type B x 4
Audio Jack in x 4

Console Ports (output)

DisplayPort 1.4 x 4 ( Quad Display )
USB 3.2 Gen 1 Type A x 2 ( Rear & Front )
USB HID Type A x 4 ( Rear & Front )
Audio Jack out x 1

Video Resolution (Max.)

7680 x 4320 @ 60Hz (4:4:4) ( DSC )
7680 x 4320 @ 60Hz (4:2:0)
5120 x 2880 @ 60Hz (4:4:4)
5120 x 1440 @ 120Hz (4:4:4)
3840 x 2160 @ 144Hz (4:4:4)
3840 x 2160 @ 120Hz (4:4:4)
2560 x 1440 @ 144Hz (4:4:4)
2560 x 1440 @ 120Hz (4:4:4)
2048 × 2048 @ 60 Hz  (4:4:4) (2K x 2K)

Push Buttons

Port Selection x 4

HDCP Compliance

HDCP 2.2 / 1.4

Control Methods

Hotkey / Push Button

LED Indicator (Power / Status)

Power x 1
Computer ready x 4 (green)
Computer selected x 4 (red)

Automatic scan interval

3, 8, 15, 30 seconds

Enclosure

Metal

Power Supply

DC 9~12V

Operation Environment

0~40°C, Humidity<80%

Storage Temperature

-20~60°C

Enclosure

Metal

H x W x D (mm)

100 x 220 x 130

Weight (g)

2000
