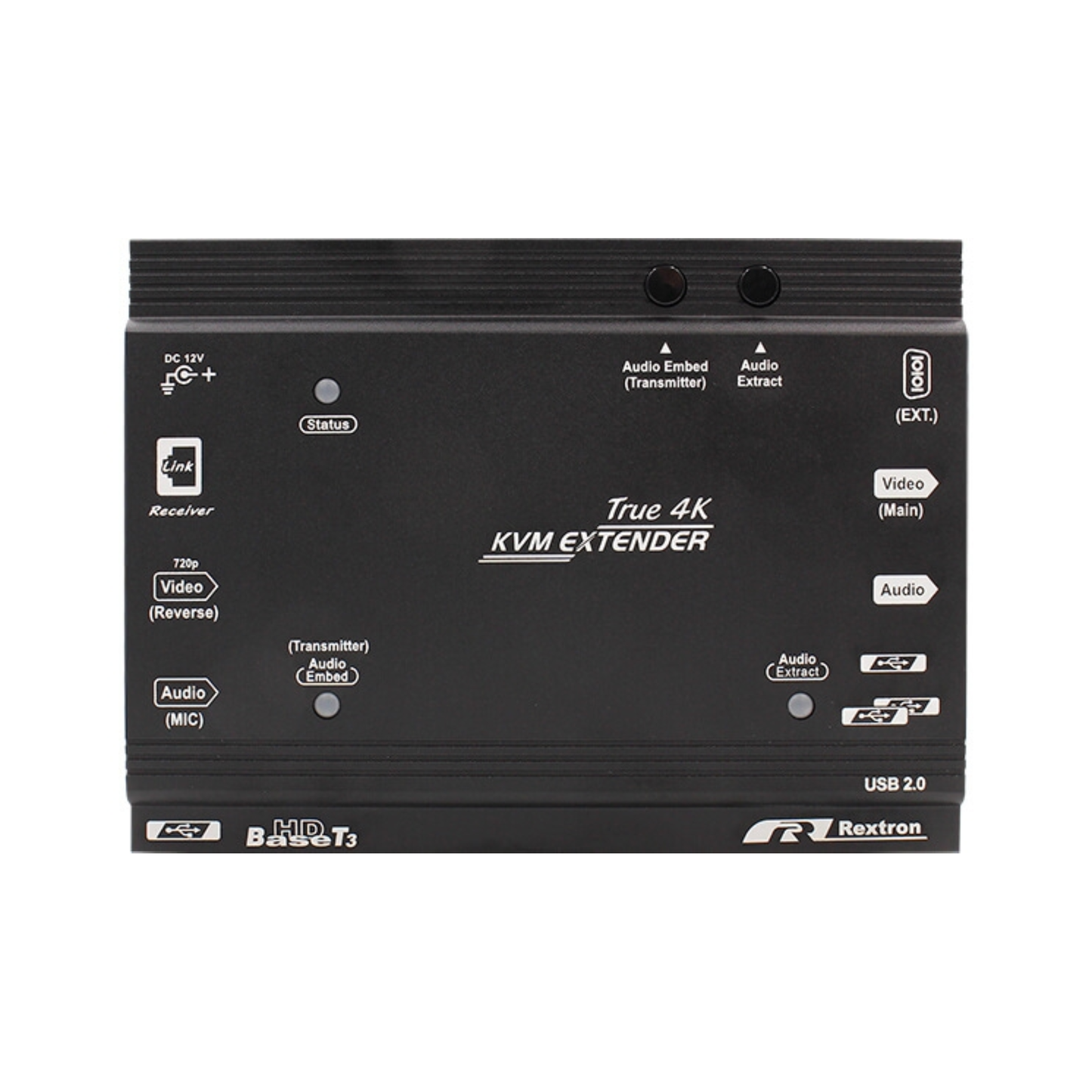

HDBT 3.0 CAT7 Ethernet Extender

HDBT 3.0 CAT7 Ethernet Extender

$699.00
$699.00
Sale Sold out
Shipping calculated at checkout.
View full details

Features & Compliance

  • Reliable Remote Access of a Computer or Video Source via a CAT.6A / 7 Cable Up to 90 Meters ( 295 feet )
  • Uncompressed True 4K HDMI 2.0 Extension Enabled by HDBaseT 3.0 Technology
  • HDMI 2.0 Video Supports Most Popular Resolutions Up to 4K@60Hz ( 4:4:4 ) and 8K@30Hz ( 4:2:0 )
  • HDCP 2.2 and HDCP 1.4 Compliance
  • HDR10 Support for Best Visual Experience
  • USB 2.0 Extension Supports Keyboard, Mouse, USB Storage, USB Camera, and Other Devices
  • Serial Extension Allows for Extensive RS232 Control Applications
  • CEC Pass Through Allows Easy Control
  • Audio Embed Allows User to Insert Informative Audio Content into The HDMI
  • Audio Extract Allows Easy Connection to an Analog Audio Amplifier
  • Audio Embed Controls at Both Sides Allows Practical Audio Applications
  • ARC ( Audio Return Channel ) Facilitates Sound Bar Application
Auxiliary HDMI Allows Flexible Monitoring:
  •  Transmitter's HDMI 2.0 Local Output
  •  720P Video Return from The Receiver Facilitates Monitoring and Recording Purposes

Specifications





Transmitter

Receiver

  MAX.Resolution

7680x4320@30Hz ( 4:2:0 )
4096x2160@60Hz ( 4:4:4 )
3840x2160@60Hz ( 4:4:4 )

  Video Interface

HDMI 2.0 Input x 1

HDMI 2.0 Output x 1

  USB 2.0 Extension

USB-B x 1
USB-A x 3

USB-A x 4

  Speaker Extension

3.5mm SPK Jack x 1 ( In )

3.5mm SPK Jack x 1 ( Out )

Independent Transmission or
Embed into HDMI Signal

Independent Transmission or
Extract from HDMI Signal

  Microphone Extension

3.5mm MIC Jack x 1 ( Out )

3.5mm MIC Jack x 1 ( In )

  Serial Extension

RJ11 x 1 ( RS232 )

 Push Buttons

Audio Embed x 1
Video Switch x 1

Audio Embed (Transmitter) x 1
Audio Extract x 1

  LED Indicator

Status x 1
Audio Embed x 1

Status x 1
Audio Embed x 1

  HDCP Compliance

HDCP 2.2 and HDCP 1.4

  HDBaseT Interface

RJ45 x 1 ( CAT.6a /CAT.7 )

  Extension Range

MAX. 70~90 Meters with CAT.6a / CAT.7
( CAT.6a Cable Should be Verified by HDBaseT )

  Auxiliary HDMI

HDMI 2.0 Local Out

( Not Used )

720P Video Return ( Receiver-to-Transmitter )

  Power Supply

DC 12V

  Operation Environment

0~50°C, Humidity<80%

  Storage Temperature

-20~60°C

  Enclosure

Aluminum

  H x W x D (mm)

30 x 110 x 135

  Weight ( g )

375

375
