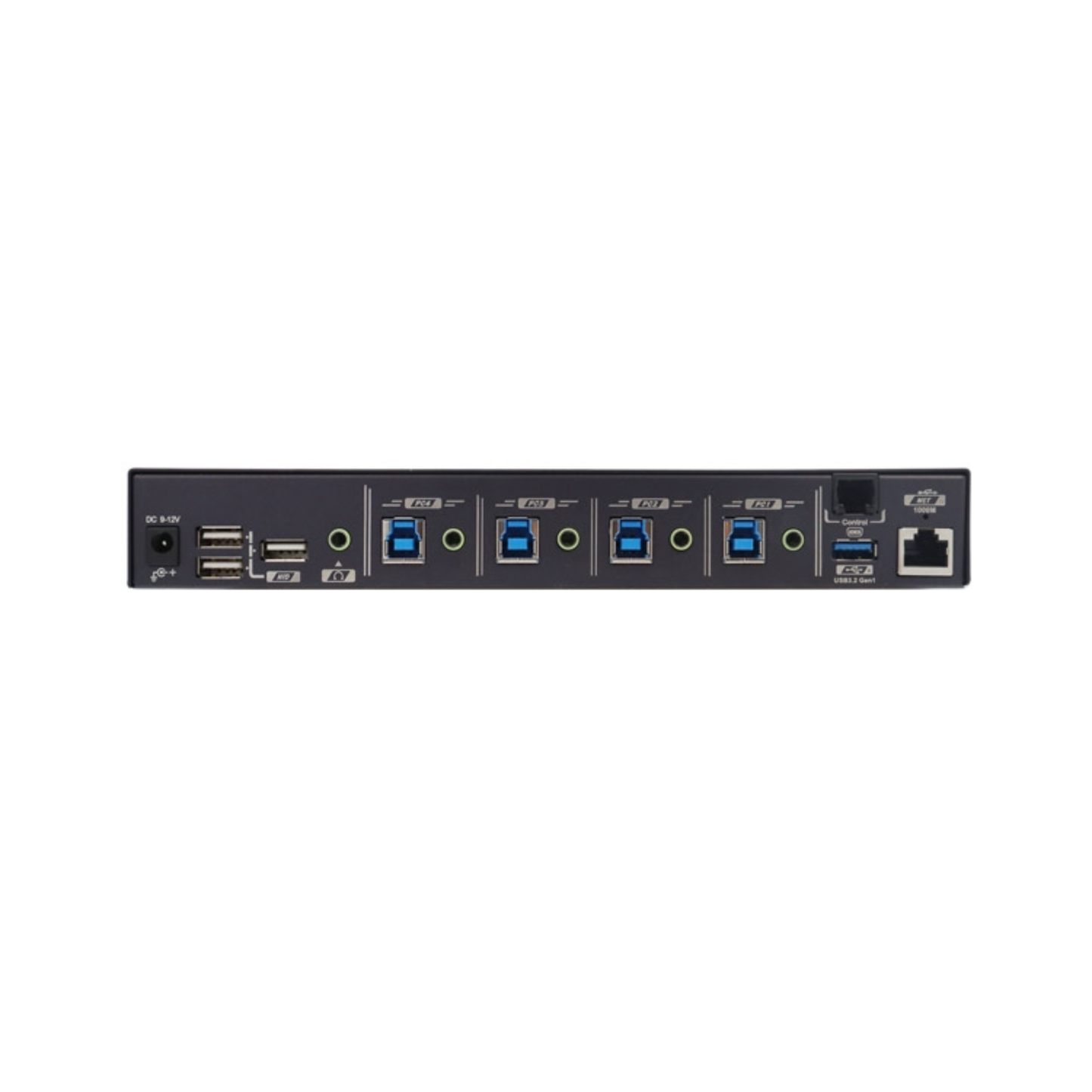

USB 3.0 SYNC & Serial Control KM

SYNC MODE

This feature simultaneously sends cursor movement, commands, and keyboard input to ALL connecting 4 identical hardware computers.

This is helpful in many types of workloads. For instance, you can mass debug or install Windows to multiple computers at the same time.

Serial Port

A unique tracking system enables the USB devices to be operated independently or concurrently. For example, USB tracking function allows USB switch (KM Switch) users to decide whether or not the USB devices (USB Flash Drive, Printer, and Scanner) switching follows the PC ports switching.

Ethernet Port

The built-in 10/100/1000 Mbps Ethernet Port allows you to share Internet connectivity among the connected computers without unplugging, moving, or re-plugging the Ethernet cable in each computer!

All of these awesome features can be tweaked from afar with the included remote.



Computer/Server Ports (input)	USB 3.2 Gen 1 Type B x 4 USB Audio Analog in x1 3.5mm Audio in x 4
Console Ports (output)	USB 3.2 Gen 1 Type A x 2 (Front & Rear) USB Type A x 3 (USB HID) 3.5mm Audio out x 1 GbE LAN RJ45 x 1 (Rear) ( USB Based )
IR Control	IR Receiver x 1 ( Front )
Serial Control	RJ11 x 1
Baud Rate ( Defaut = 19200bps )	9600~115200 ( Up to 8 Selections )
Push Buttons	Port-Select x 4 Functions x 4
LED Indicator (Power / Status)	4 Computer Selected LED, (Red) 4 Computer Ready LED, (Blue)
Compatibility	USB 3.2 Gen 1/ USB 2.0 / 1.1
USB Synchronizer	Yes
Mouse Roaming	Yes
Control Methods	Hotkey / Button / Serial / IR Mouse Moaming / Mouse Control / USB Broadcast ( Synchronizer )
Monitor Layouts	4x1, 2x2, 1+3, 1x4, 1+2, 1+3
Power Supply	DC 9~12V
Operation Environment	0~50°C, Humidity<80%
Storage Temperature	-20~60°C
Enclosure	Metal
H x W x D (mm)	34 x 240 x 130
Weight (g)	1000
